TM7-Plus – Base / Mobile PoC Radio


Radio Details

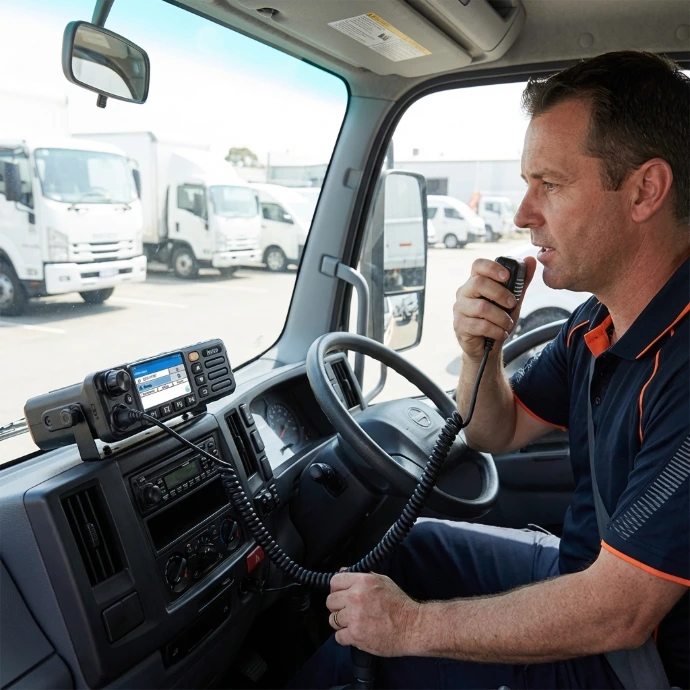

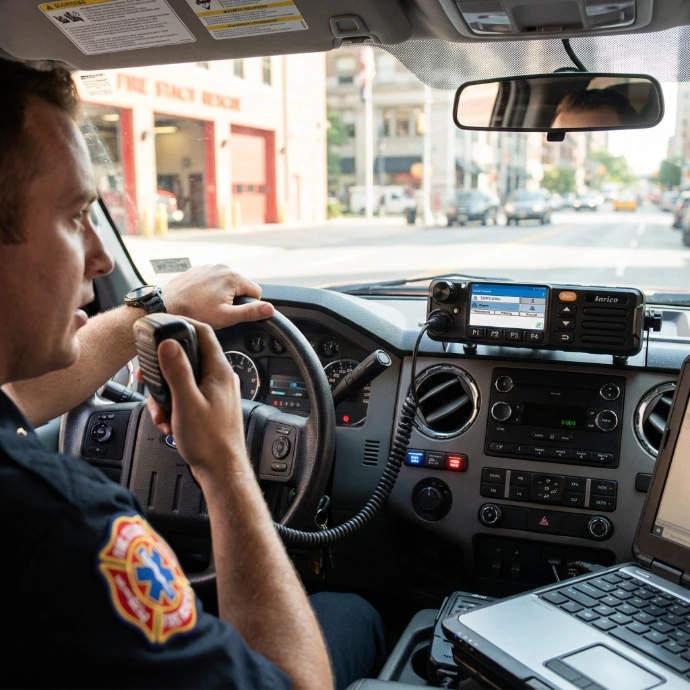

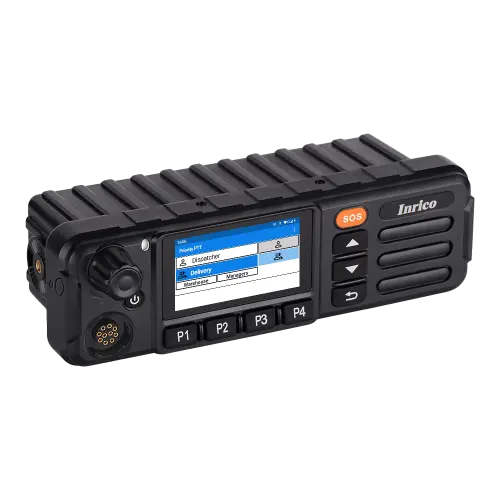

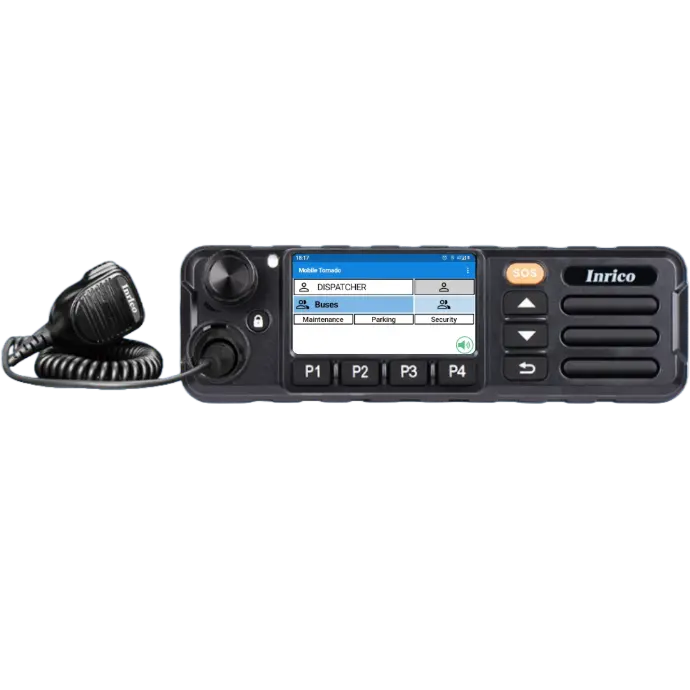

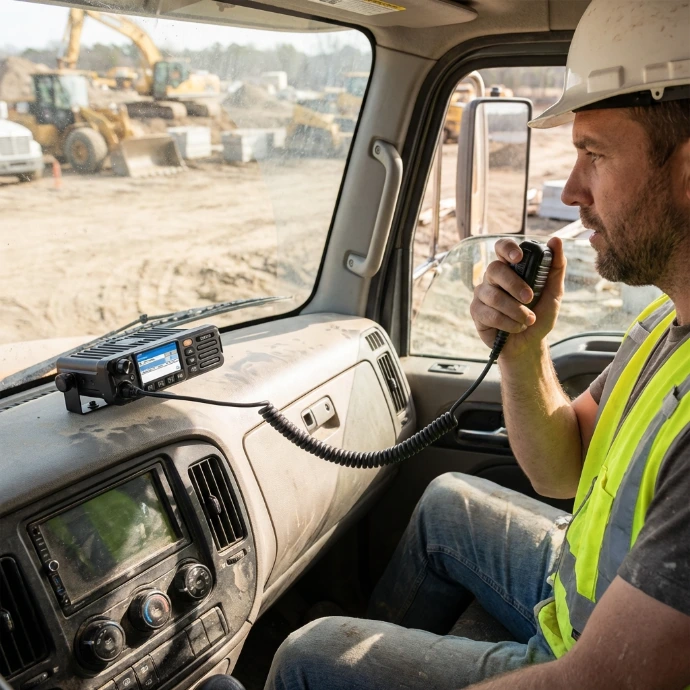

The Mobile Tornado TM7-Plus is a high-performance mobile Push-to-Talk over Cellular radio. Designed for in-vehicle or base station use. Built for demanding operations such as public safety, private EMS, towing, and fleet management.

It operates over 4G/LTE and Wi-Fi networks to provide reliable wide-area communication.

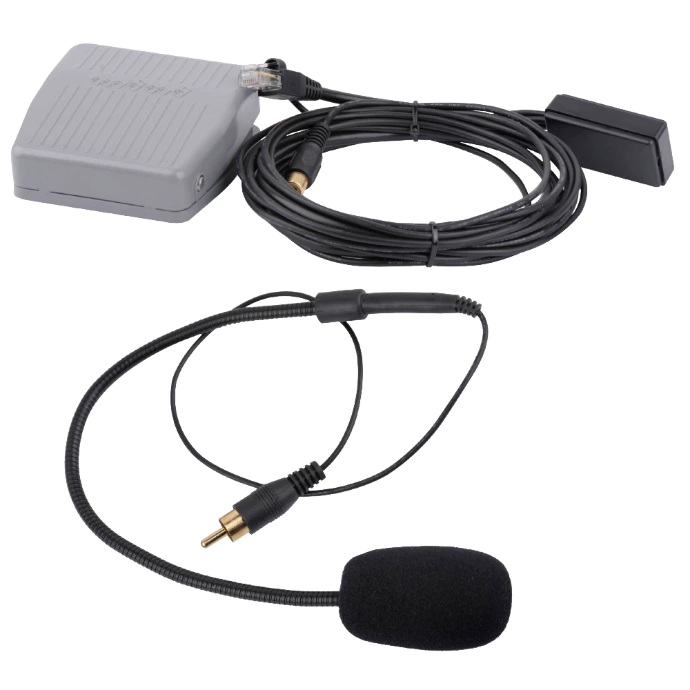

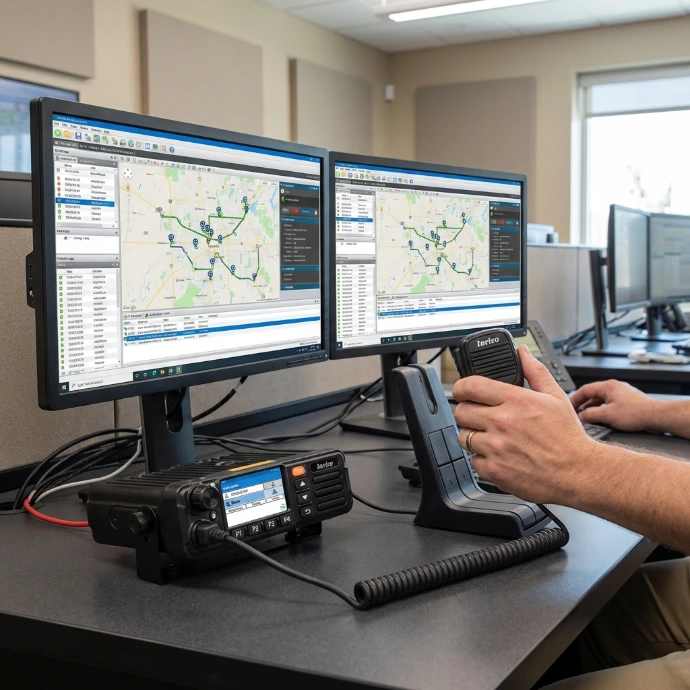

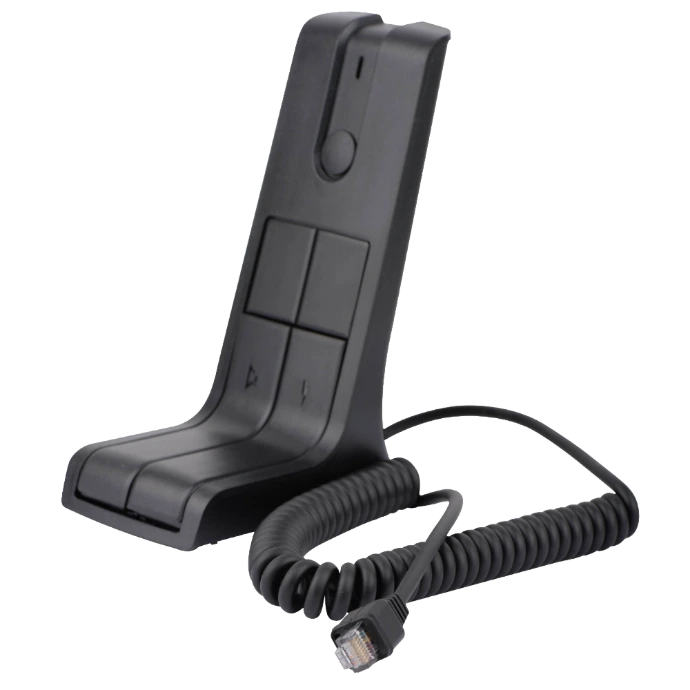

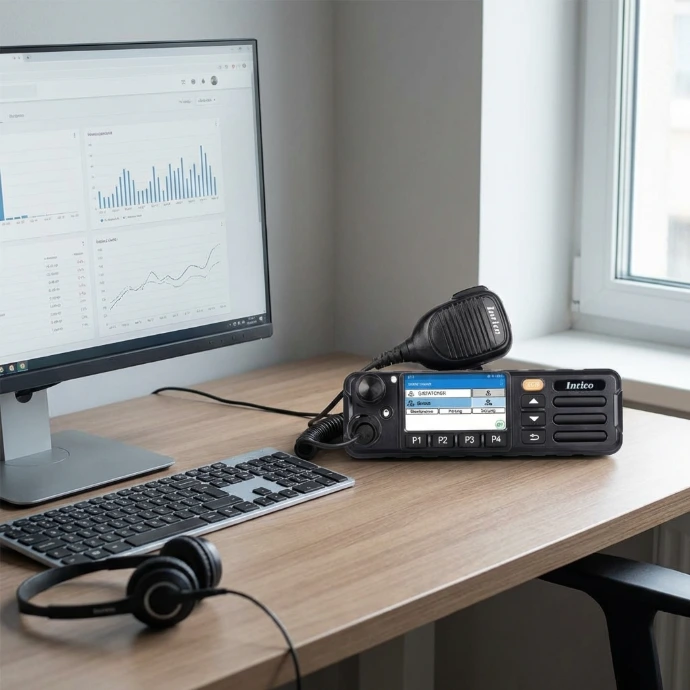

Its powerful 5W speaker delivers clear audio in noisy environments, and optional accessories allow easy conversion to a base station with external speaker, desktop mic, or foot switch connections.

The TM7-Plus includes power cables, mounting hardware, LTE and GPS antennas, and features 40V overcurrent protection for use on 12, 24, or 36VDC systems. Each unit is activated on our multi-carrier platform with unlimited talk and nationwide coverage, and we pre-configure all private channels before shipping for quick, ready-to-use operation.


Each TM7-Plus includes:

(1) PoC Mobile Radio

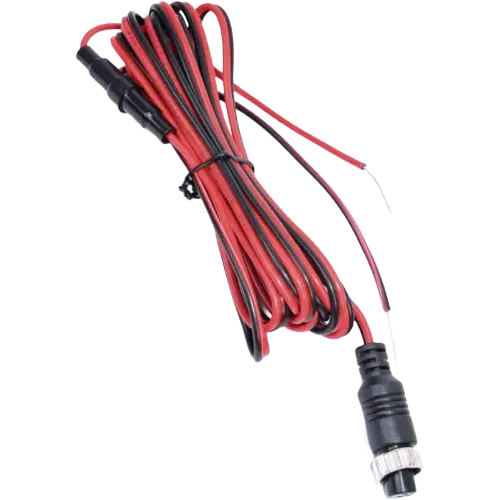

(1) Power Cable

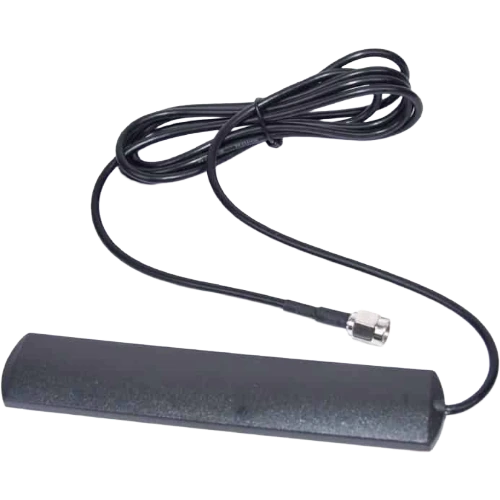

(1) LTE Antenna

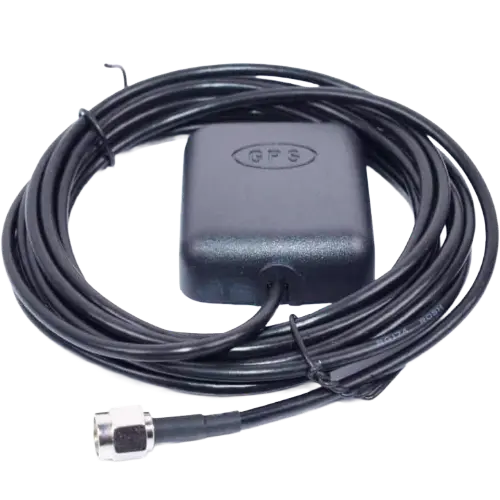

(1) GPS Antenna

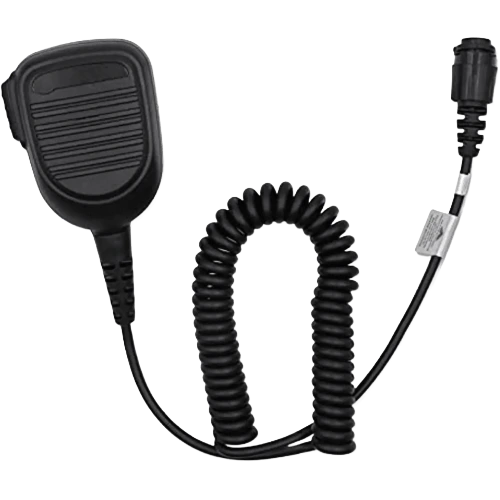

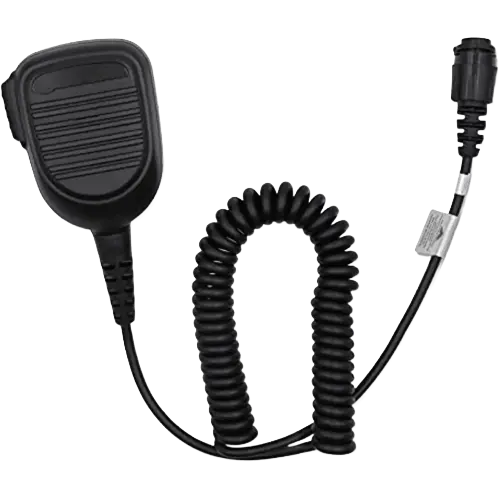

(1) Palm Mic w/ Holder

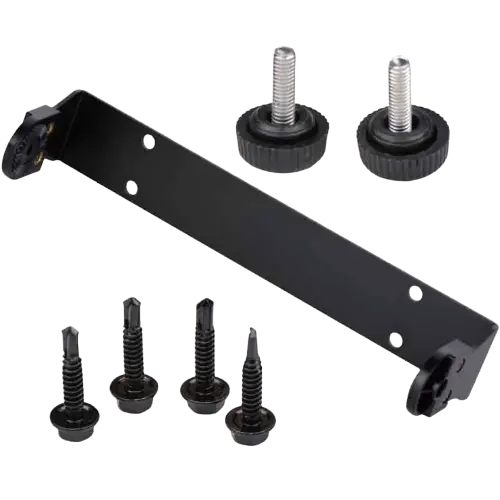

(1) Radio Mounting Bracket


Contact Us for Pricing & Availability



Specifications


Software


Operation System

Android 11

Hardware


CPU

MediaTek

Memory

RAM: 2GB, ROM: 32GB

Display

2.45″ Touch Screen, 240×432

Audio

Speaker, 5W, 35 x 58mm

Microphone

Handheld Palm

Interface

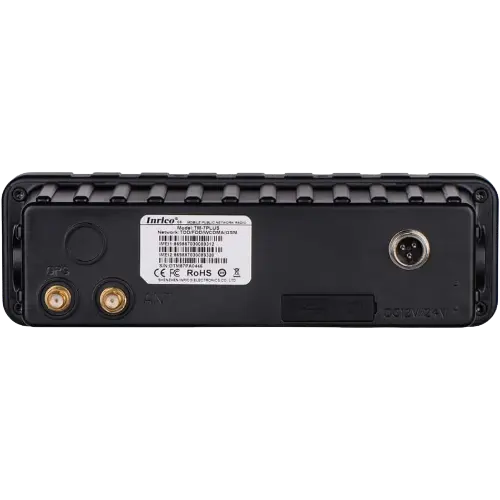

External Power Interface / External GPS Antenna Interface / External GSM Antenna Interface / External Speaker Interface

Camera

External USB Supported

Card Slot

2 x SIM (3FF), TF/microSD

Connectivity


Cellular

GSM: B2/B3/B5

WCDMA: B1/B2/B4/B5

TD-SCDMA: B34/B39

FDD-LTE: B2/B4/B5/B7/B12/B13/B17/B28A/B28B/B66

TDD-LTE: B38/B40

WiFi

IEEE 802.11 a/b/g/n/ac/k/v/r, 2.4G & 5G

BT

V4.0 & BLE 5.0

GPS

GPS/GLONASS/AGPS

NFC

No

Power

12, 24, 36VDC – B+ / IGN / GND

Physical


Dimensions

188 x 58 x 87 mm (7.4″ x 2.3″ x 3.4″)

(Including Front Knob)

Weight

450g (1lb)

Ratings

IP54

Working Temperature

-20°C – +60°C (-4°F – +140°F)

Storage

-30°C – +70°C (-22°F – +158°F)

Certification

CE/FCC/ROHS


Optional Accessories
